Hose Reels

1. HOSE I.D., O.D., and Length

When space permits, select a reel with greater hose capacity than you require. This allows you to rewind the hose with less care and keeps the hose well protected within the disc dimension, even if the hose is not wound in uniform coils.

2. Size & Type of Swivel Joint & Seal for Inlet/Outlet

In selecting your reel please note the size of you hose versus the inlet and outlet sizes. Reducing your fitting & hose size will allow for more hose capacity.

3. Retraction method & proper use:

• SPRING DRIVEN: Automatic rewind requiring no power source. Operator is to guid the hose or cord as it self-tretracts and wraps around the drum. For models to be mounted 15 feet above the floor, consult factory & specify on P.O.'s for proper spring retraction motor.

• HAND CRANK: Operator must manually crank the reel and guide the hose or cord evenly as it wraps around the drum to reach full capacity.

• MOTOR DRIVEN: Requires a power source to operate in AC, DC, Air or Hydraulic power. On/Off switches and speed controllers are available to help control retraction speedl. You must guide the hose or cord efficiently back on the reel to reach full capacity.

4. MOUNTING POSITION

Where is it getting installed? Floor, ceiling, truck, wall... we can help decide! :)

5. CHOOSE TYPE OF HOSE

Consider temperature, product type and pressure required (PSI).

Always use good quality hose rated for the service and operating pressure required. Poor quality hose tends to expand and contract under pressure surges. When this happens, hose remaining on the reel may bind and become difficult to handle. In extreme cases, poor quality hose may expand under pressure to the extent that the reel becomes distorted and inoperable.

6. CUSTOMIZE IT

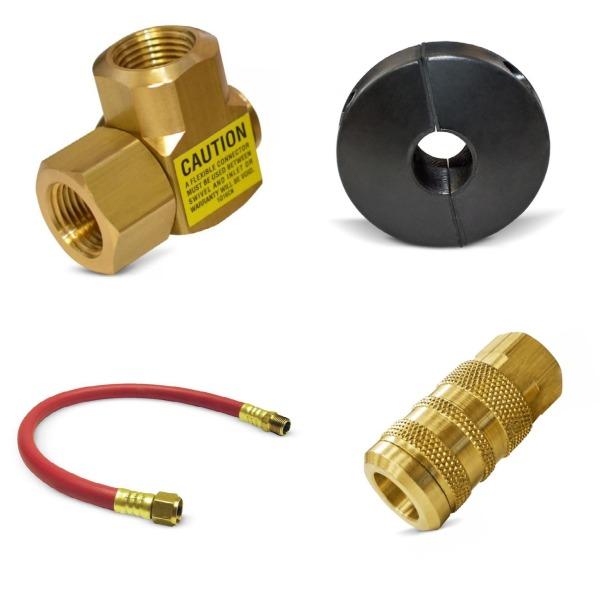

Once you select your reel type consider the different add-on features such as roller brackets, special mounting brackets, carry handles or a cart for portability.

7. STILL CAN'T DECIDE? JUST CALL US!
